HIGH STAGE SEPARATORS
Offset OPEX With Production Revenue by utilizing the IRISH Energy 13790 kPa (2000 PSI) Four Phase Separators, 9.9 m3 vessel volume for maximized retention time. Certifications - Sour Service NACE Standard, MR0175-94, Piping - ASME B31.3, API 6A
VESSEL RATINGS
Dual Temperature Rating, with 118 C (245 F) High Temperature, - 45 C (- 50 F) Low Temperature, High-Level Fluid Shut down, Sparge (Clean) while flowing, no production upset.
FULLY AUTOMATED CAPABILITIES
The vessels are fully automated with low-emission pneumatic controls. The instrument air control option equals zero emissions! Easily switch back to Natural Gas supply as a backup in case of Instrument air interruption.
LOW STAGE SEPARATORS
STORAGE VESSELS 1350 kPa (196 PSI)
UNMANNED OPERATION - 63 m3 vessel volume for maximized retention time, Temperature Rating - 204 C (400 F) High Temperature -45 C (- 50 F) Low Temperature
CERTIFICATIONS
Sour Service NACE Standard MR0175-94, Piping - ASME B31.3, API 6A
AUTOMATION CAPABILITIES FOR UNMANNED OPERATIONS
Self-Cleaning, High-Level Shut Down, SCADA compatible. Sparge while flowing (no production upset)
Long Term Facility Programs that exceed all regulatory requirements, Exceeds Facility Specifications, Primary Components for Production, High-rate recovery to enhance well deliverability, and Water and sand management.
AUXILLARY EQUIPMENT
MEGA FLARE STACK - 120 foot
12-inch Main with a 1m3 Flare Knock out. 12 independent 4” tie-in points Holster Skid Mounted
Corrosion-resistant flame arrest system and continuous Ignition System with manual fireball ignitor (Backup ignition)

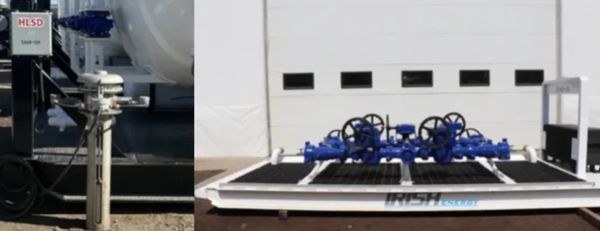

10k Choke and Diversion Manifolds 10K Junk Catchers
Tank Overflow Protection Pressure/Float Switch
that is SCADA Compatible. Canada Patent #2,997,144 / Mexico Patent #18/02925 / United States Patent #10955277 5163-6
Pipe 3” and 4” 13,790 kPa (2K psi) Production Line
3” 68,950 kPa (10k psi) Flow Line
